Software for configuration and selection of ball valves with accordant actuator.

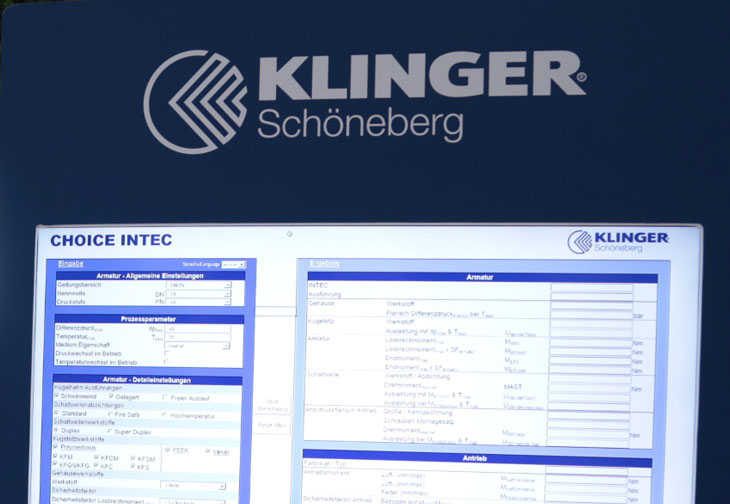

Software “CHOICE INTEC”
With this program the user will be able to select a ball valve with the accordant actuator for himself. The result of this is a clearly defined specification of the ball valve with actuator as well as application compatible technical und economical configuration.
Input parameters are the nominal size (NPS), the nominal pressure (Class), the operating conditions and also the actuator brand / type in combination with the actuator air supply and safety factor.
The result is the selection of a ball valve in reference to the type respectively design with specification of the seat- and stem material and the outcome of this the torque including safety.
Furthermore the size of the actuator with the specification of the min./max. actuator torque and also the minimum ISO-flange size with the accordant maximum allowable torque will be issued.
