QUADAX DESIGN PRINCIPLES
With the new valve series quadax®, the müller co-ax group is expanding the range of products of valves, especially with larger sizes. The unique design, a quadruple (four offset) design and a new manufacturing technology, quadax® meets the highest tightness requirements, even under extreme temperature conditions, ranging from -454°F to +1472°F.
TRIPLE OFFSET COMPARING QUADRUPLE OFFSET

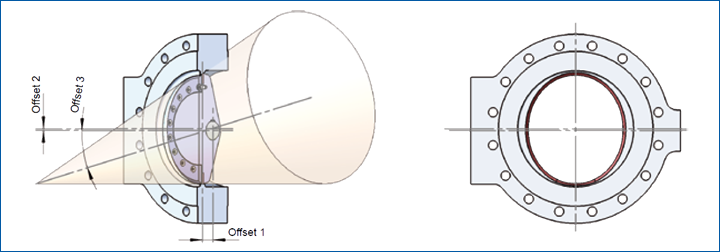

Triple offset butterfly valves have been around for years. With definite advantages over rubber lined and double offset valves, they are currently widely used in industry. Offset 1: The valve shaft is offset from the centerline of the valve seat. Offset 2: The valve shaft is offset from the centerline of the pipe. Offset 3: The disc seal shape is manufactured to the shape of a slice from a round cone whose axis is offset from the centerline of the pipe. The shape of the slice is an ellipse.
THE FOURTH OFFSET

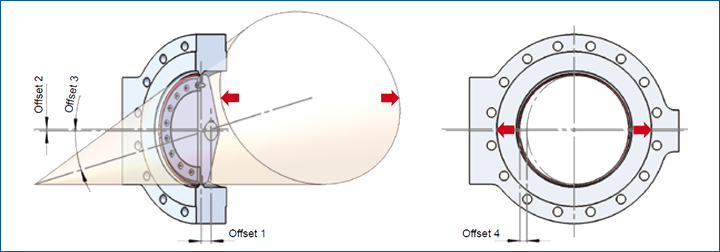

quadax® utilizes a patented seal design that results in a sealing surface that is ROUND. The benefits of a round seal are many, giving us significant advantages over triple offset valves. Offset 4: The cone shape is stretched to an ellipse. The disc seal made to the shape of a slice from this elliptical cone, results in a seal that is perfectly round. The cone shape is stretched to an ellipse. The disc seal made to the shape of a slice from this elliptical cone, results in a seal that is perfectly round.
FEATURES AND BENEFITS
The sealing element does not touch the body seat until it is completely sealed. It doesn’t drag (wear across the body seat).
Because the pipeline is round, and the seat area flow path is round, there is no flow restrictions as seen in triple offset valves.
The quadax® patented fourth offset design incorporates a disc seal and body seat that are both perfectly round. There is no need for seal ring deformation or rubbing. Because of this unique feature, the required torque is much less; lower torque, smaller actuator, more economical automation.
- Extreme temperatures, ranging from -454°F to +1472°F
- Zero leakage, Bi-Directional
- Superior cryogenic performance
- Zero rubbing / Zero Friction
- Extensive U.S. inventory:
- Sizes 2” to 24” standard stock (up to 60” and above)
- ANSI classes 150# and 300# standard stock (through 1500#)
- Body styles lug, double-flanged, gate replacement and buttweld
- Carbon steel and stainless steel standard stock (special material; duplex, Inconel, bronze)
MORE SEAL OPTIONS
The round sealing components of the quadax® allow us to offer additional sealing options. The quadax® can use both laminated seals and O-Ring Seals. These O-Ring Seals are unique to quadax® patented four-offset design.
- ISO 9001:2015
- Fire Safe (API-607 6th Ed.)
- SIL3 Certified
- TA Luft II certified, for fugitive emissions
