F-2 ISO-STANDARD CASN

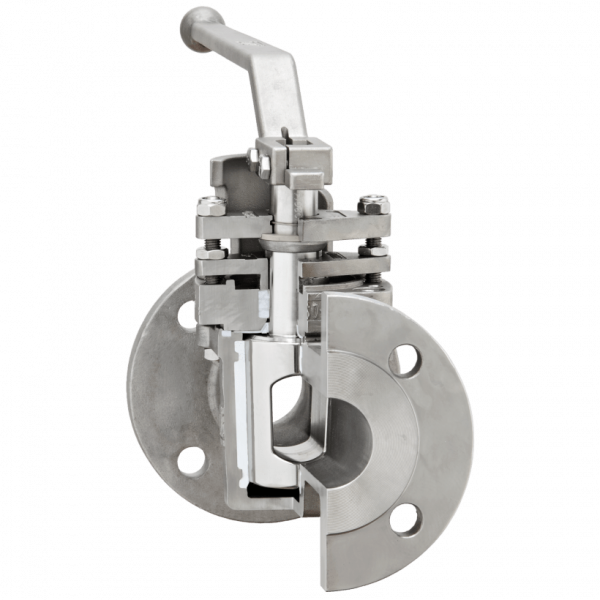

Two way plug valve for fluctuation temperatures, Chemical Sealing System Type CASN/CASN-SL, with ISO-top flange

DIN-EN: DN 15 – 600 / PN 10 – 40
ASME: NPS ½“ – 24“ / class 150 – 300
PT range: -30 < T < 230/280°C, vacuum 10-8 mbar

Download
SPEC SHEET
CERTIFICATE
Design Features

Design Characteristics

  • free of cavities
  • maintenance free – self lubricating
  • mounting-flange for actuators acc. to DIN ISO 5211
  • easy accessible adjustment of the plug, even with mounted actuator
  • vacuum tight
  • fugitive emmission resp. clean air act certified (TA-Luft 2002 approval)
  • Directive 2014/68/EU
  • FDA conformity
PT-Diagram

Operating temperatures < -30°C and > 220 °C have to be checked and approved by AZ according to the operating conditions.

Besides the P/T value of the sleeve the limitations of the valve bodies also have to be considered. Please refer to the EN 12516-1 resp. ASME B16.34 in order to choose a proper pressure rating (PN/class). The shown values refer to austenitic stainless steel 1.4408 (A351 Gr. CF8M).

1) For operating temperatures below -10°C low temperature / austenitic steels are required.
2) Sleeve: There are different sleeve materials / compounds available.

Materials

Standard body materials

  • Carbon Steel 1.0619, ASTM A216 WCB
  • Stainless Steel 1.4408, ASTM A351 CF8M
  • Stainless Steel 1.4308, ASTM A351 CF8
  • Unalloyed stainless steel casting (low Temp.) 1.1138, LCC/LCB/A352

Standard plug materials

  • Stainless Steel 1.4408, ASTM A351 CF8M
  • Stainless Steel 1.4308, ASTM A351 CF8

Special materials

  • Ductile cast iron ENJS 1049, ASTM Gr 60-40-18 / A395
  • Alloy
  • Monel
  • Nickel
  • Zirconium
  • Titan
  • Tantal
  • other materials on request
Sealing Systems

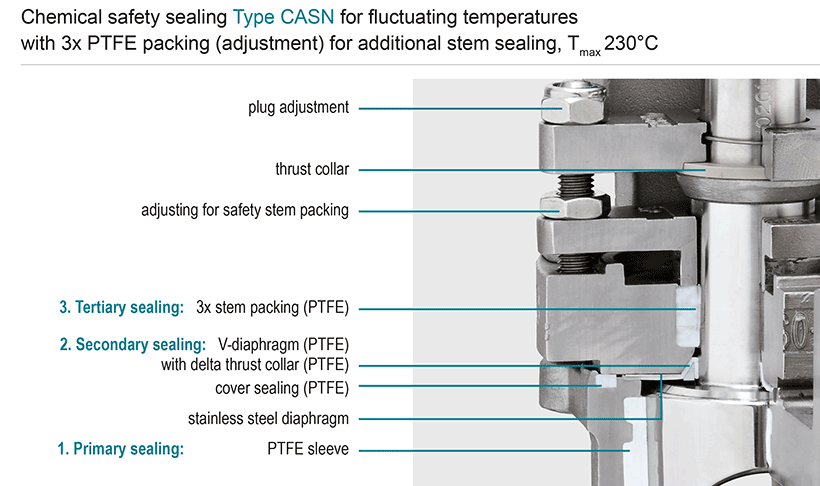

Type CASN

Chemical safety sealing for fluctuating temperatures
with 3x PTFE packing (adjustment) for additional stem sealing;
Tmax 230°C

Type CASN-SL

Chemical safety sealing for fluctuating temperatures
with 3x PTFE packing (live loaded disc springs) for additional
stem sealing; Tmax 230°C

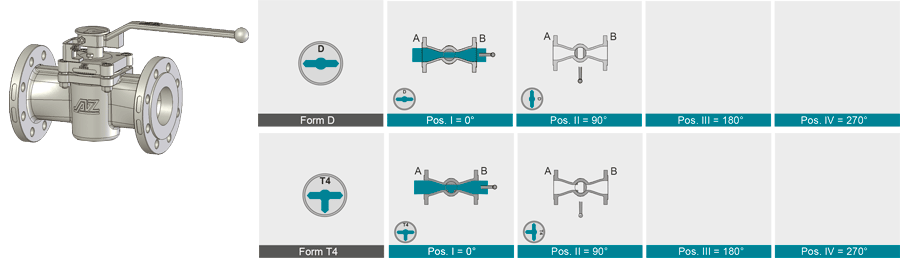

Port Forms
Dimensions

For geometric reasons, threads are used in the flange bores in a few cases

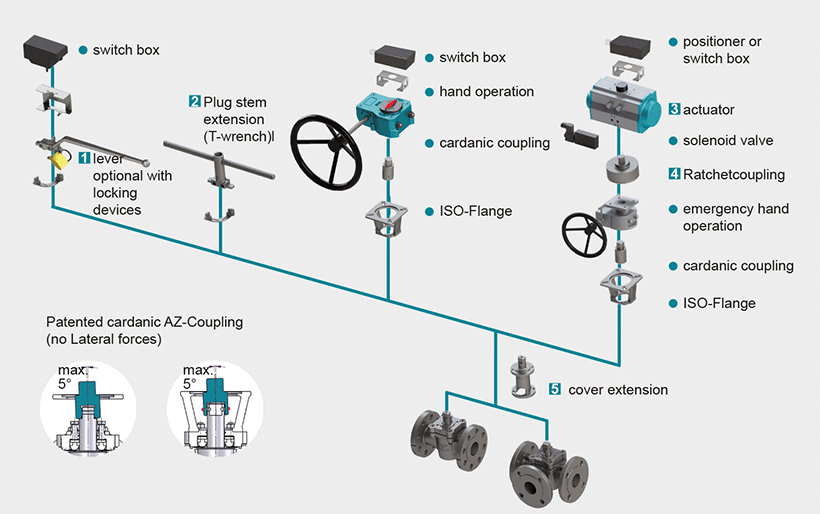

Actuation

1 Locking Devices
Pilot valve combinations, pad lock eyelets, linear key conception, indexing plunger arrestor.

2 Plug stem extension
Solid construction in stainless steel with T-wrench, Standard extension 100 mm or 150 mm, non standard lengths are available on request

3 Actuators
Actuators for mounting-flange acc. to DIN ISO 5211

NEW: Pneumatic actuator AIR GEAR for plug valves with high torque =150.000 Nm

4 Ratched coupling
To usw on multiport valves with standard 90° actuator for bigger switchpositions than 90°

5 Cover extension
Solid construction in stainless steel, Standard extension 100 mm or 150 mm high,  non standard lengths are available on request . Hexagonal bolts on adjustment ring freely accessible. Note: Don’t use with sealing FSN/FSN-SL and CASN/CASN-SL
