HDS – High-Pressure Plug Valve

High-Pressure Plug Valve

DIN: 15 – 500 / PN 100 – 160
ASME: NPS ½“ – 20“ / class 600 – 900
PT range: -30 < T < 230/280°C, vacuum 10-8 mbar

Download
Design Features

Design Characteristics

  • High pressure safety sealing with stuffingbox packing
  • type “HDS-GL” with trunnion mounted plug
  • free of cavities
  • maintenance free – self lubricating
  • readjustment of plug and stuffing box possible
  • vacuum tight
  • fugitive emmission resp. clean air act certified  (TA – Luft 2002 approval)
  • Directive 2014/68/EU
  • fire safe design API 607 / ISO 10497
  • FDA conformity
Materials

Standard body materials

  • Carbon Steel 1.0619, ASTM A216 WCB
  • Stainless Steel 1.4408, ASTM A351 CF8M
  • Stainless Steel 1.4308, ASTM A351 CF8
  • Unalloyed stainless steel casting (low Temp.) 1.1138, LCC/LCB/A352

Standard plug materials

  • Stainless Steel 1.4408, ASTM A351 CF8M
  • Stainless Steel 1.4308, ASTM A351 CF8

Special materials

  • Alloy
  • Monel
  • Nickel
  • Zirconium
  • Titanium
  • Tantalum
  • other materials on request
Sealing Systems

Type FSN

Firesafe safety sealing (API 607) for fluctuating temperatures
with 3x graphite packing (adjustable) for additional
stem sealing; Tmax 280°C

Port Forms

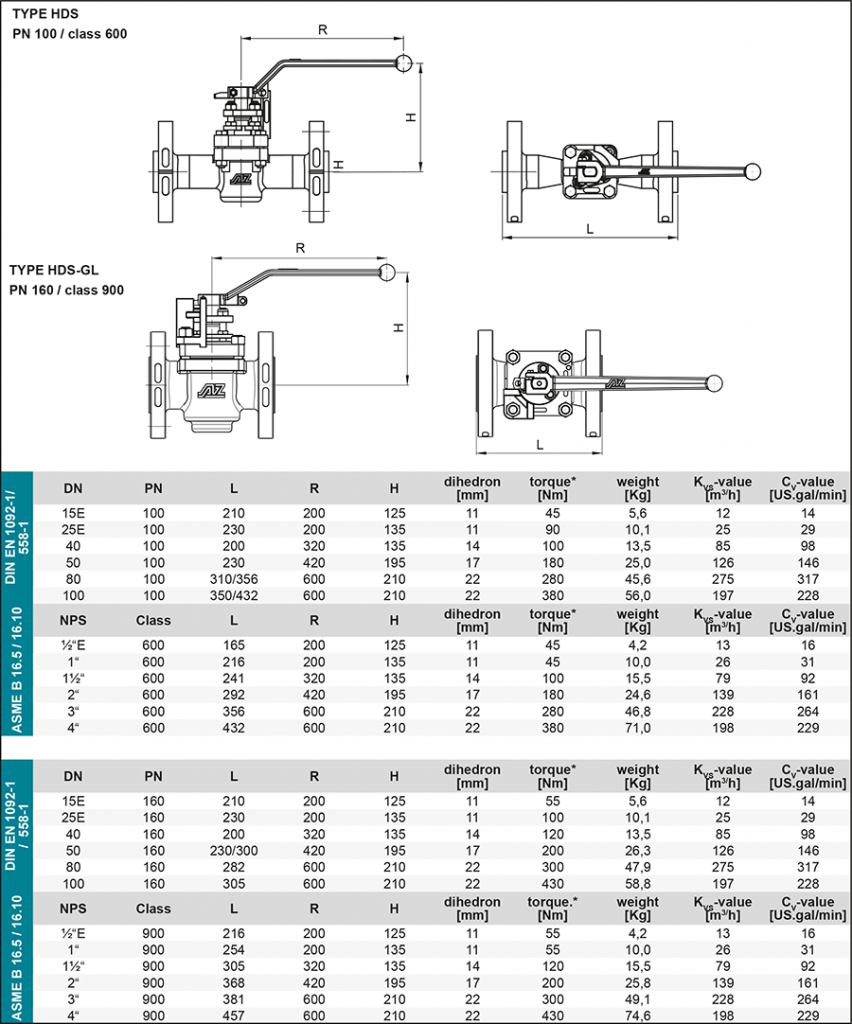

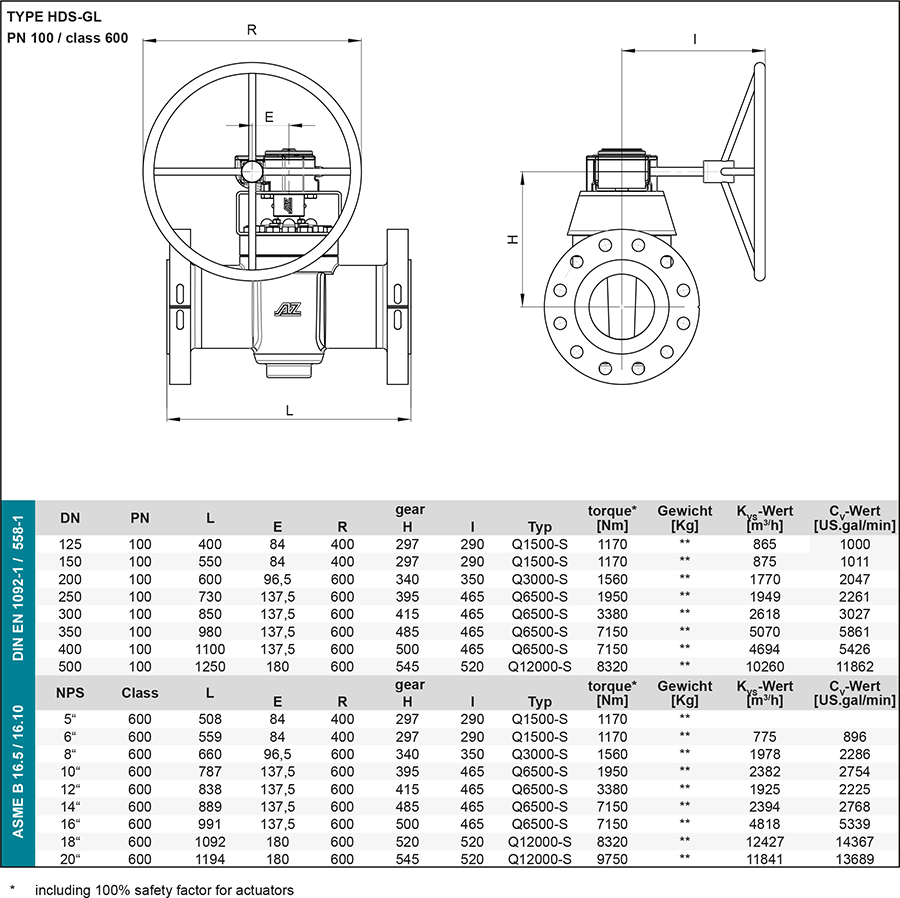

Dimensions

For geometric reasons, threads are used in the flange bores in a few cases

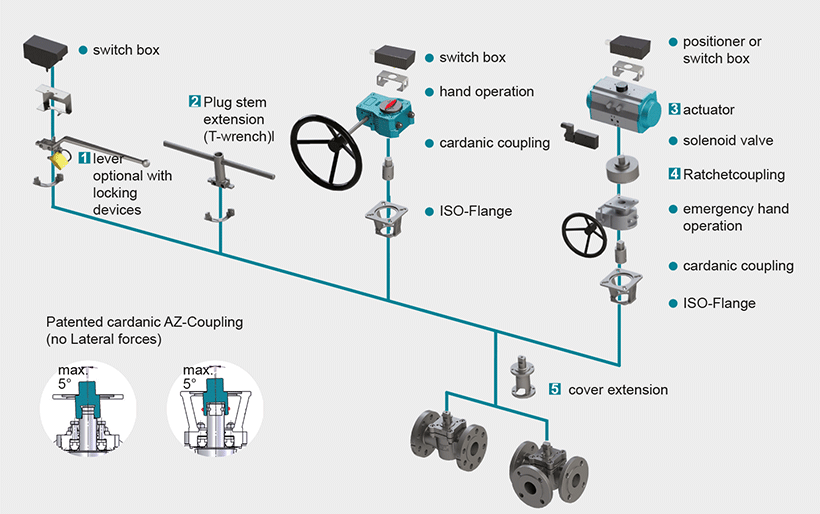

Actuation

1 Locking Devices
Pilot valve combinations, pad lock eyelets, linear key conception, indexing plunger arrestor.

2 Plug stem extension
Solid construction in stainless steel with T-wrench, Standard extension 100 mm or 150 mm, non standard lengths are available on request

3 Actuators
Actuators for mounting-flange acc. to DIN ISO 5211

NEW: Pneumatic actuator AIR GEAR for plug valves with high torque =150.000 Nm

4 Ratched coupling
To usw on multiport valves with standard 90° actuator for bigger switchpositions than 90°

5 Cover extension
Solid construction in stainless steel, Standard extension 100 mm or 150 mm high,  non standard lengths are available on request . Hexagonal bolts on adjustment ring freely accessible. Note: Don’t use with sealing FSN/FSN-SL and CASN/CASN-SL
