SAFE-LINED

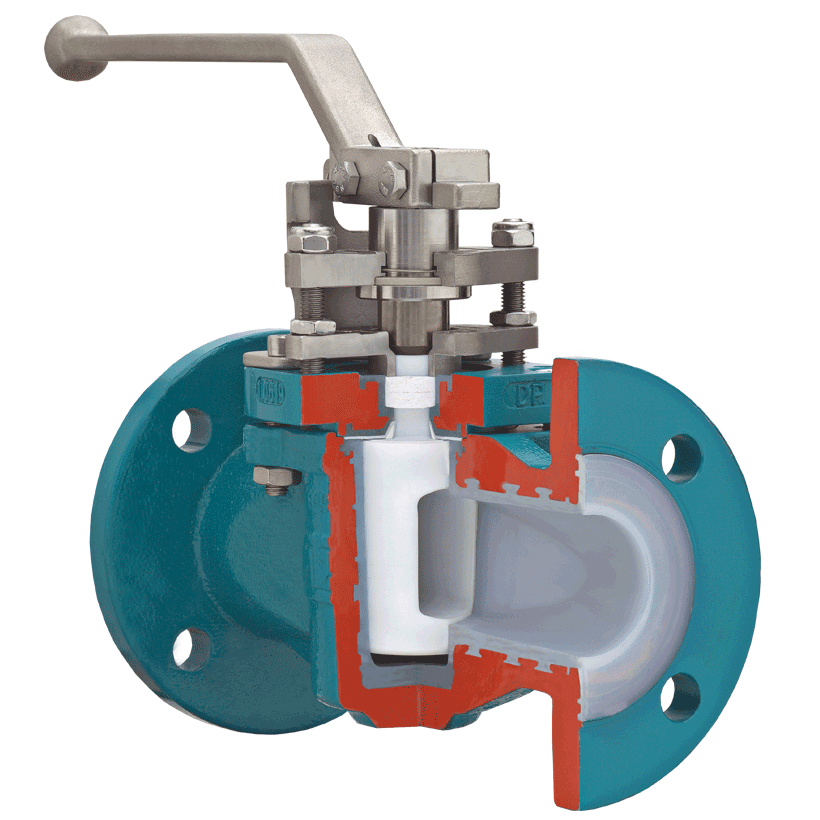

Plug valve with chemical-resistant, vacuum-proof lining, with ISO top flange, sealing system for fluctuating temperatures Type SAFE-LINED

DIN-EN: DN 15 – 600 / PN 10 – 40
ASME: NPS ½“ – 24“ / class 150 – 300
PT range: -30 < T < 210°C, vacuum tight

Download
SPEC SHEET
CERTIFICATE
Design Features

Design Characteristics

  • free of cavities
  • maintenance free – self lubricating
  • mounting-flange for actuators acc. to DIN ISO 5211
  • easy accessible adjustment of the plug, even with mounted actuator
  • with chemical resistant lining – thickness min. 3 mm
  • fugitive emmission resp. clean air act certified (TA – Luft 2002 approval)
  • Directive 2014/68/EU
  • FDA conformity
PT-Diagram

The specified values depend on the respective application (medium). Operating temperatures under -20°C only with body material 1.4408 or low-temperature steel. Hight pressure resistance / temperature resistance on request, e.g. PN 40.

Sleeve: There are different sleeve materials / compounds available.

Materials

Standard body materials
• Ductile cast iron ENJS 1049, ASTM Gr 60-40-18 / A395

Standard plug materials
• Stainless Steel 1.4308, ASTM A351 CF8
• Ductile cast iron ENJS 1049, ASTM Gr 60-40-18 / A395

Special materials
• Carbon Steel 1.0619, ASTM A216 WCB
• Stainless Steel 1.4408, ASTM A351 CF8M
• Unalloyed stainless steel casting (low Temp.) 1.1138, LCC/LCB/A352

Lining materials
• Body: PFA, PFA-conductive, FEP
• Plug: PTFE, PFA, PFA-conductive, FEP

Sealing Systems

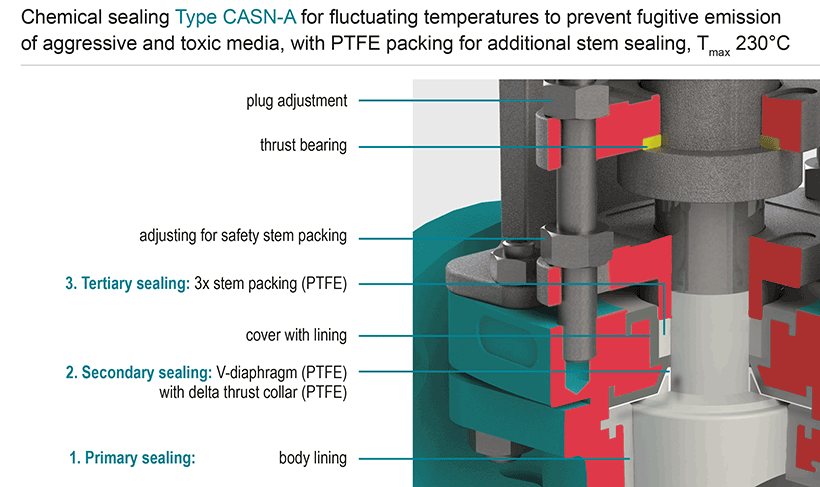

Chemical sealing for fluctuating temperatures to prevent fugitive emission of aggressive and toxic media with PTFE packing for additional stem sealing; Tmax 230°C

Type CASN-A

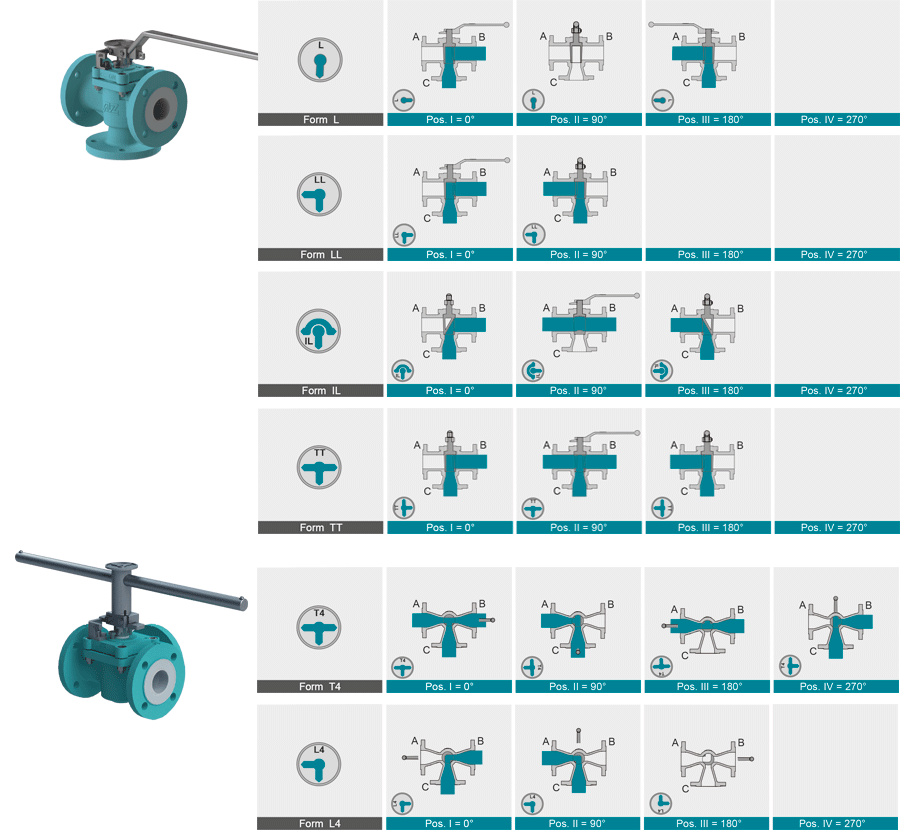

Port Forms

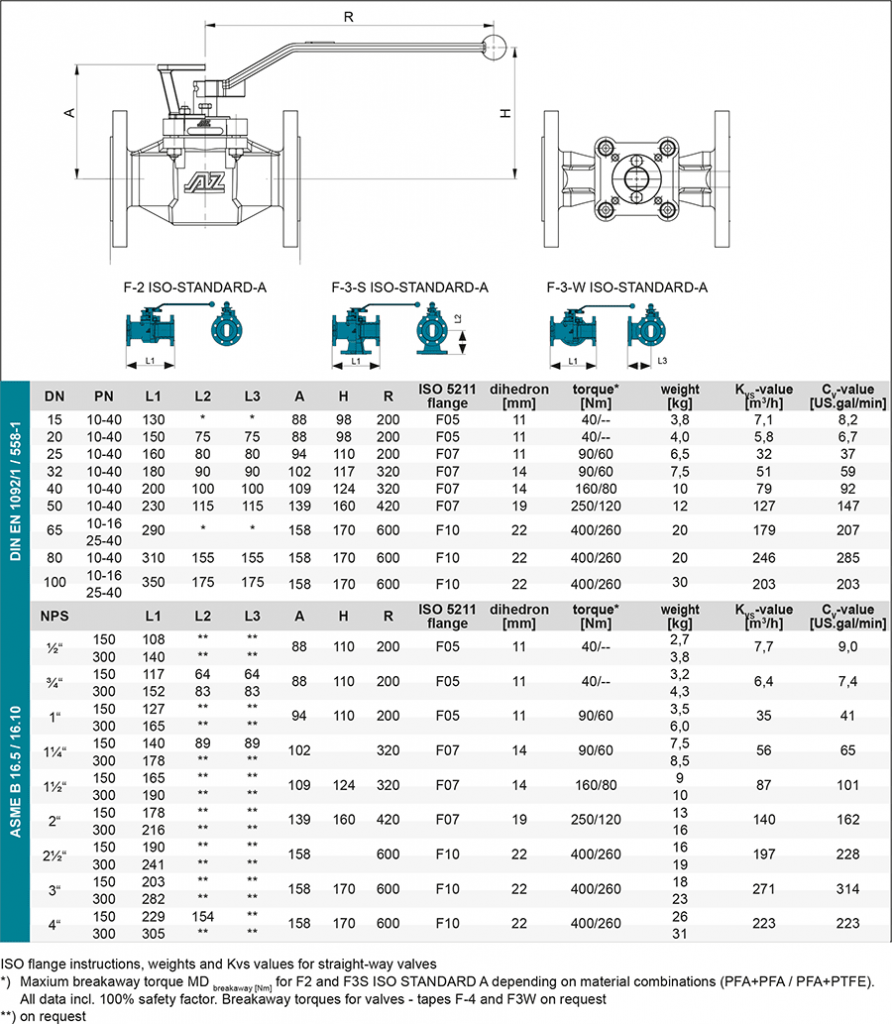

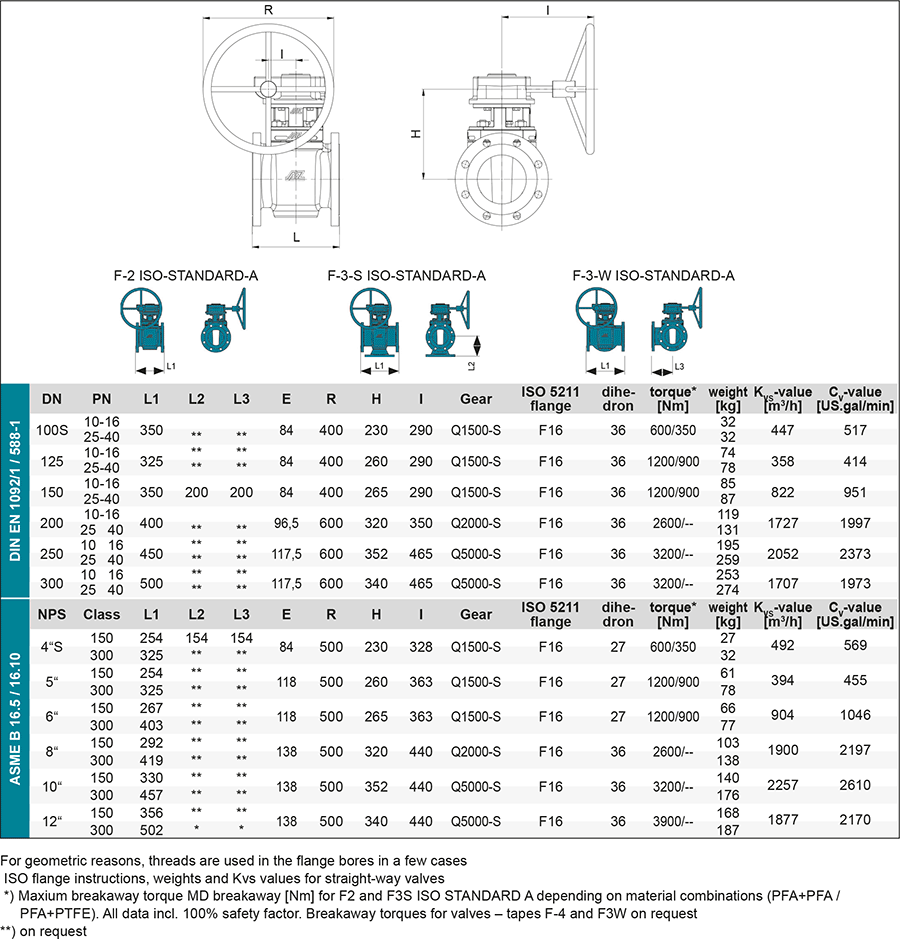

Dimensions

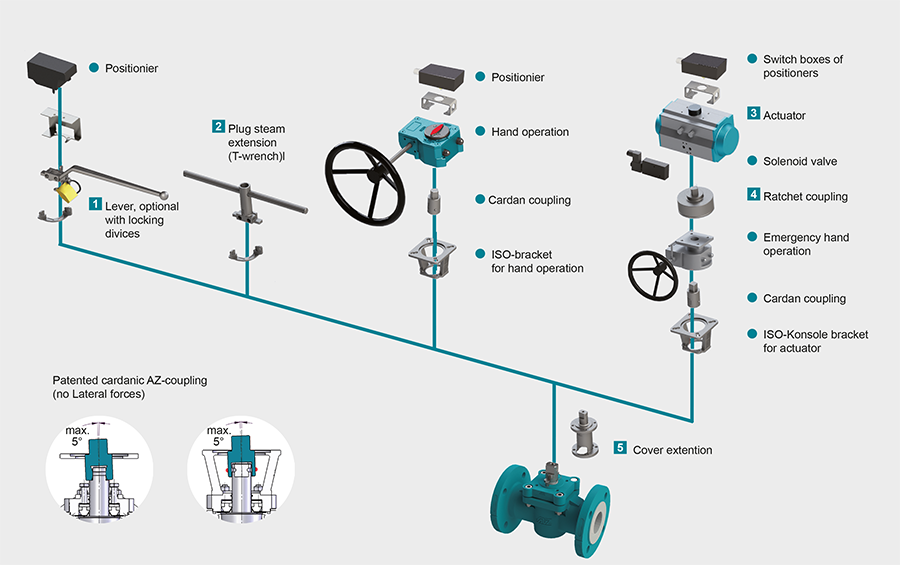

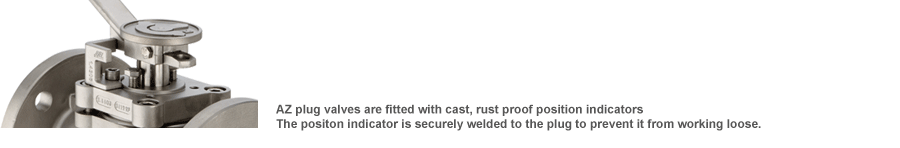

Actuation

1 Locking Devices
Pilot valve combinations, pad lock eyelets, linear key conception, indexing plunger arrestor.

2 Plug stem extension
Solid construction in stainless steel with T-wrench, Standard extension 100 mm or 150 mm, non standard lengths are available on request

3 Actuators
Actuators for mounting-flange acc. to DIN ISO 5211

NEW: Pneumatic actuator AIR GEAR for plug valves with high torque ≥150.000 Nm

4 Ratched coupling
To usw on multiport valves with standard 90° actuator for bigger switchpositions than 90°

5 Cover extension
Solid construction in stainless steel, Standard extension 100 mm or 150 mm high, non standard lengths are available on request . Hexagonal bolts on adjustment ring freely accessible. Note: Don’t use with sealing FSN/FSN-SL and CASN/CASN-SL
