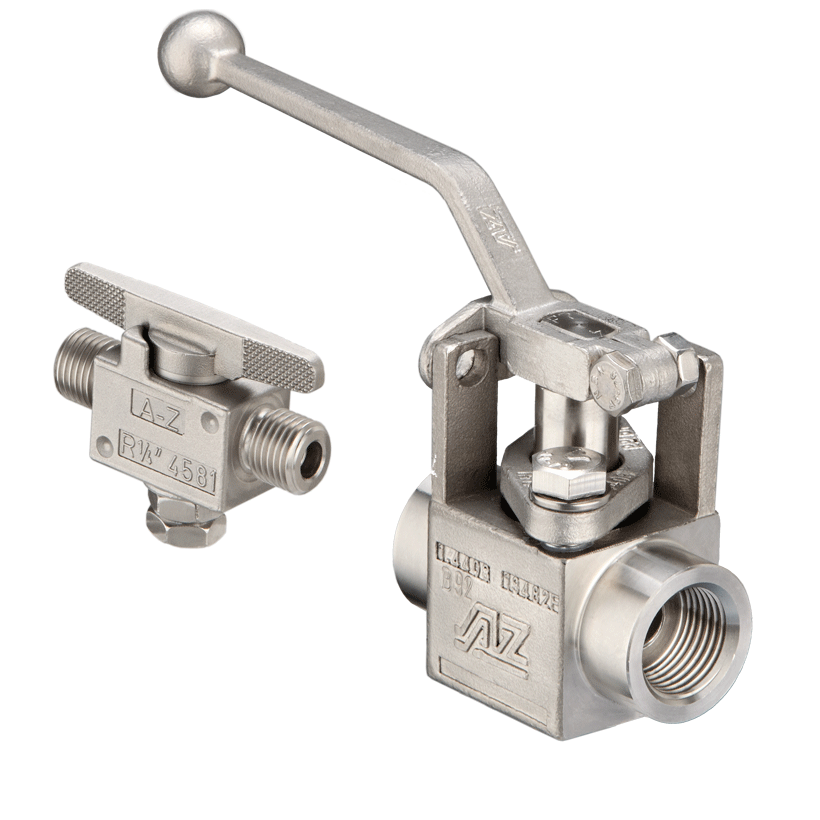

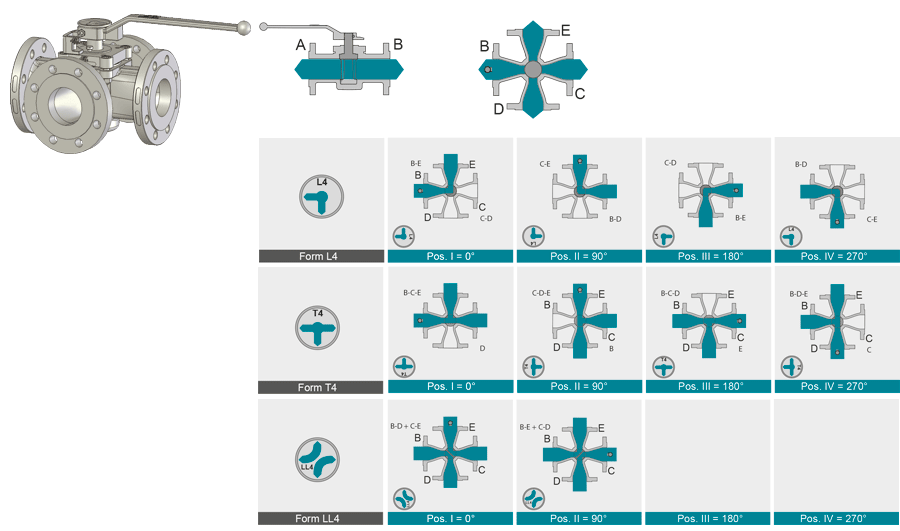

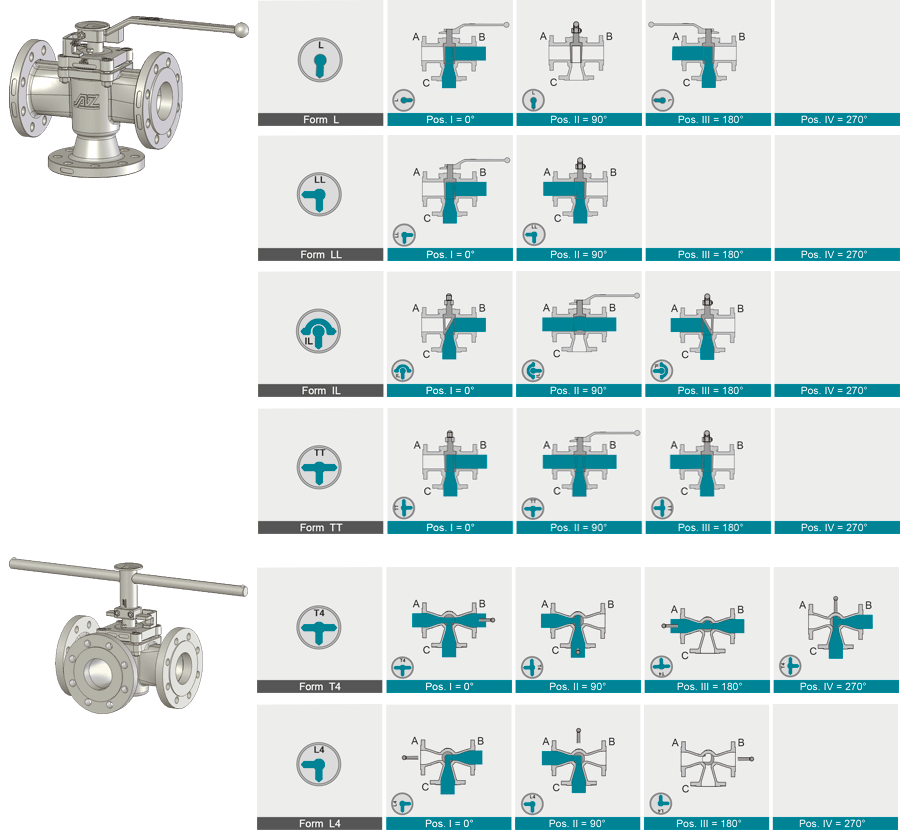

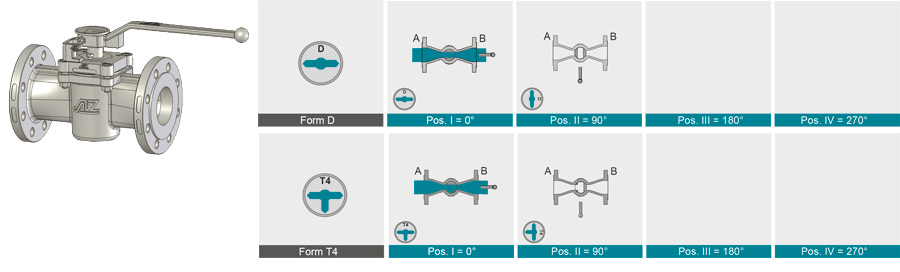

KLINGER Advantage

thread size from ¼“ up to 2“

Download

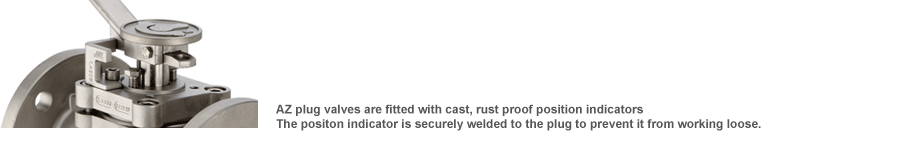

Design Features

Design Characteristics

• available with female and male threads
• free of cavities
• maintenance free – self lubricating
• vacuum tight
• fugitive emmission resp. clean air act certified (TA – Luft 2002 approval)
• Directive 2014/68/EU
• FDA conformity

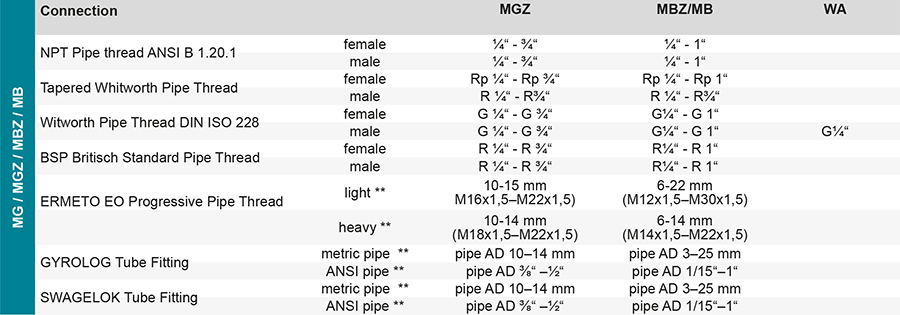

Standard connections:

• tapered Whitworth pipe thread DIN 2999
• Whitworth pipe thread DIN ISO 228
• NPT pipe thread ANSI B 1.20.1
• BSP British standard pipe thread
• Ermeto EO progressive ring screwing
• Swagelok and Gyrolok tube fitting

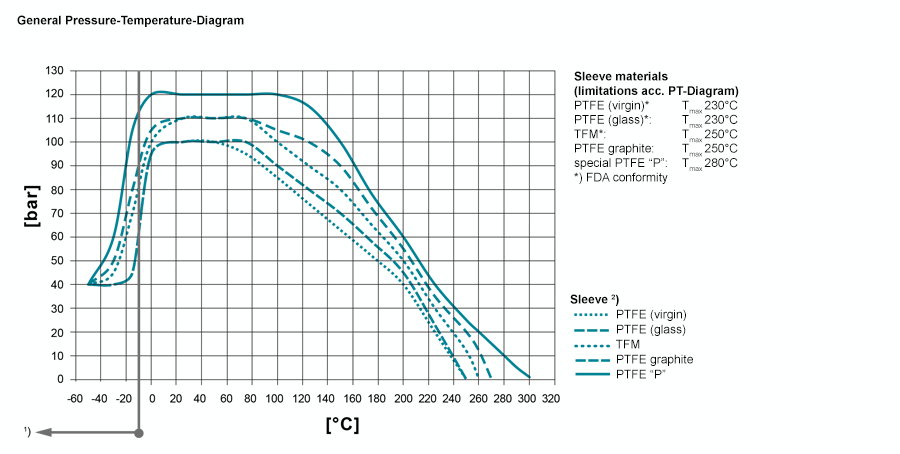

PT-Diagram

Operating temperatures < -30°C and > 220 °C have to be checked and approved by AZ according to the operating conditions.

Besides the P/T value of the sleeve the limitations of the valve bodies also have to be considered. Please refer to the EN 12516-1 resp. ASME B16.34 in order to choose a proper pressure rating (PN/class). The shown values refer to austenitic stainless steel 1.4408 (A351 Gr. CF8M).

1) For operating temperatures below -10°C low temperature / austenitic steels are required.
2) Sleeve: There are different sleeve materials / compounds available.

Materials

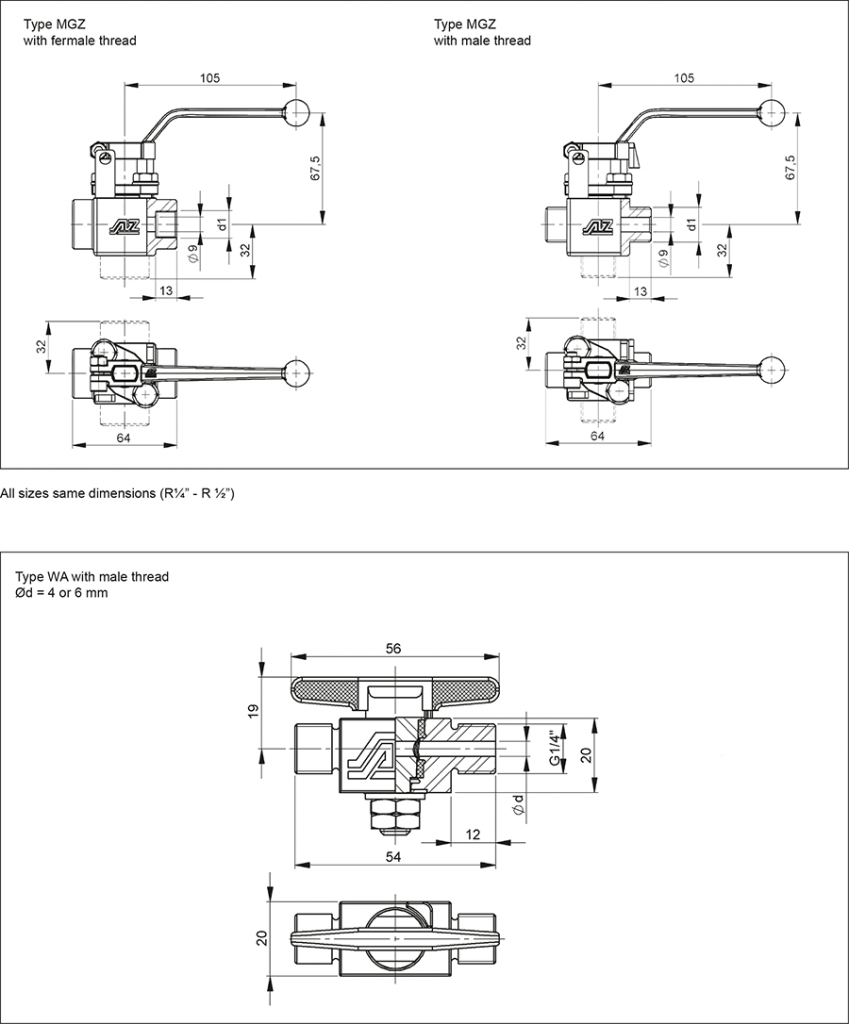

Materials Type MGZ
• Stainless Steel 1.4408, ASTM A351 CF8M
• other materials on request

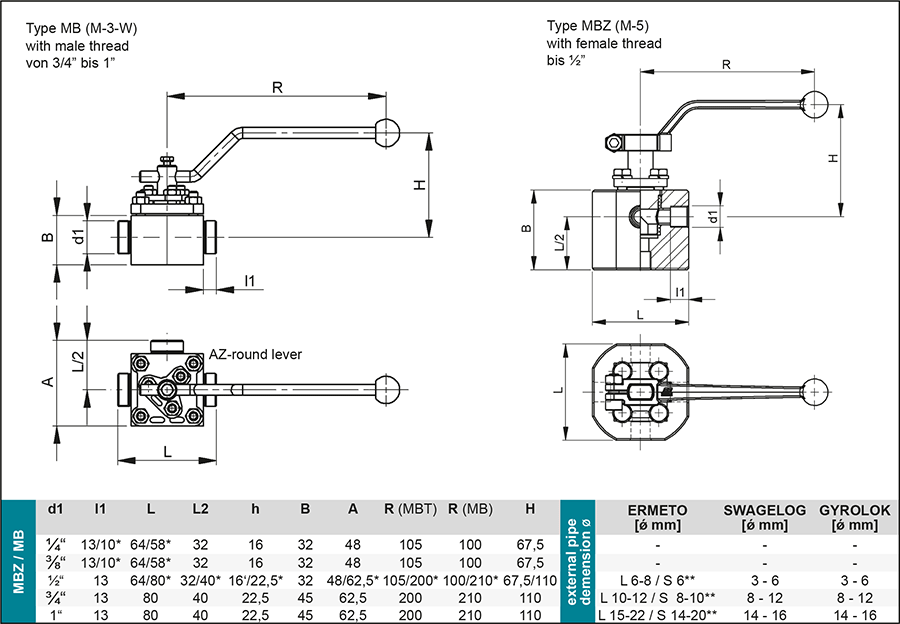

Materials Type MBZ/MB
• Special Materials Titan, Nickel, Monel, Tantal, Alloy…

Materials Type WA
• Stainless Steel 1.4408, ASTM A351 CF8M

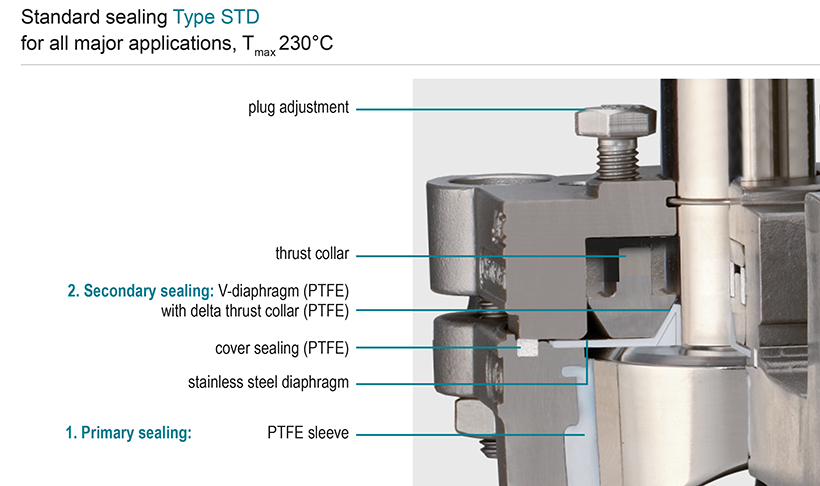

Sealing Systems

Standard sealing for all major applications;
Tmax 230°C

Type STD

Firesafe safety sealing (API 607) for fluctuating temperatures
with 3x graphite packing (adjustable) for additional
stem sealing; Tmax 280°C

Type FSN

Firesafe sealing (API 607) with graphite packing for additional
stem sealing; Tmax 230°C

Type FS

Firesafe safety sealing (API 607) for fluctuating temperatures
with 3x graphite packing (live loaded disc springs) for additional
stem sealing; Tmax 280°C

Type FSN-SL

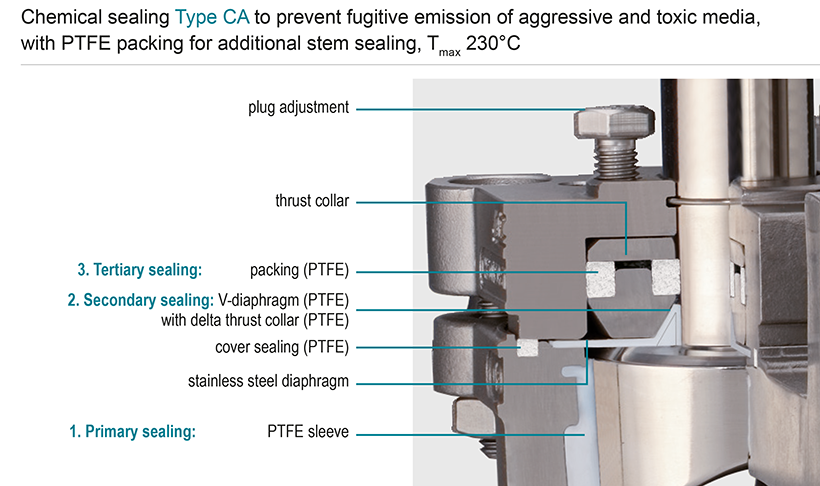

Chemical sealing to prevent fugitive emission of aggressive and toxic media
with PTFE packing for additional stem sealing; T_max 230°C

Type CA

Chemical safety sealing for fluctuating temperatures
with 3x PTFE packing (adjustment) for additional stem sealing;
Tmax 230°C

Type CASN

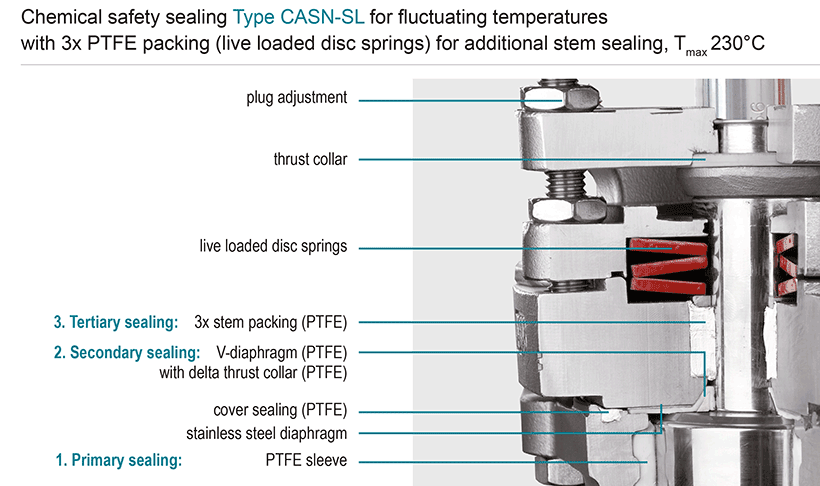

Chemical safety sealing for fluctuation temperatures
with 3x PTFE packing (live loaded disc springs) for additional
stem sealing; Tmax 230°C

Type CASN-SL

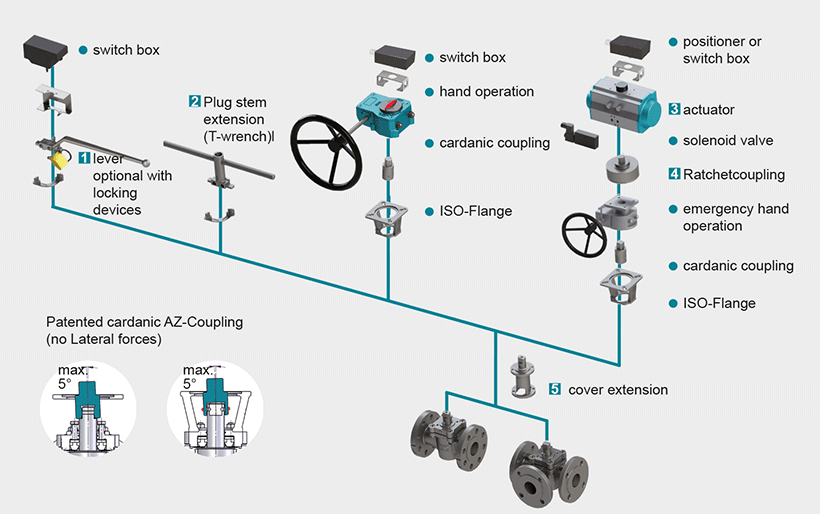

1 Locking Devices
Pilot valve combinations, pad lock eyelets, linear key conception, indexing plunger arrestor.

2 Plug stem extension
Solid construction in stainless steel with T-wrench, Standard extension 100 mm or 150 mm, non standard lengths are available on request

3 Actuators
Actuators for mounting-flange acc. to DIN ISO 5211

NEW: Pneumatic actuator AIR GEAR for plug valves with high torque ≥150.000 Nm

4 Ratched coupling

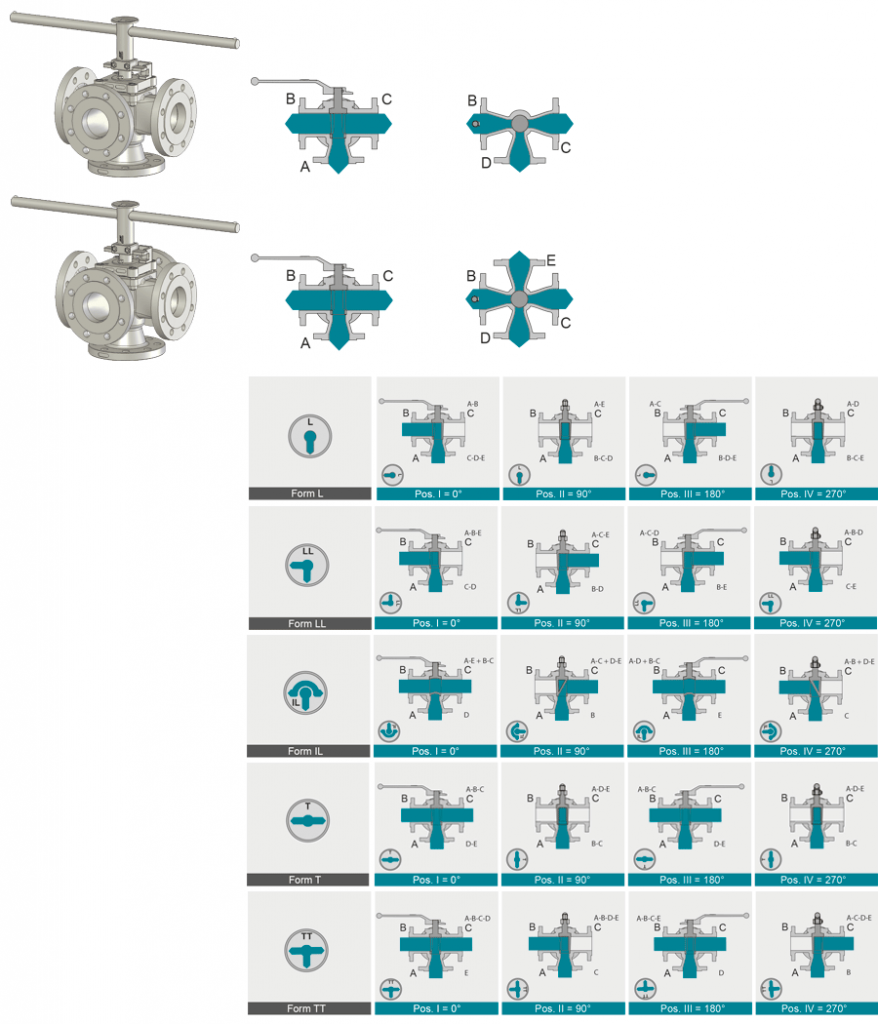

To usw on multiport valves with standard 90° actuator for bigger switchpositions than 90°

5 Cover extension
Solid construction in stainless steel, Standard extension 100 mm or 150 mm high, non standard lengths are available on request . Hexagonal bolts on adjustment ring freely accessible. Note: Don’t use with sealing FSN/FSN-SL and CASN/CASN-SL
