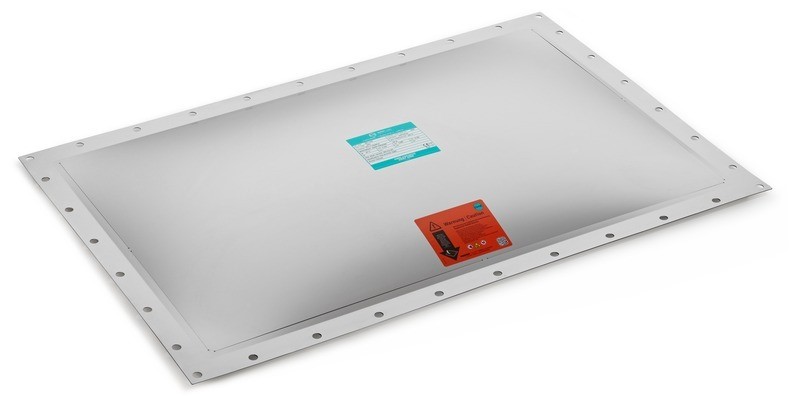

ODV EXPLOSION VENT – FOR HIGH TO FULL VACUUM AND PRESSURE CYCLING
The triple section domed construction allows low response pressure with full vacuum resistance. ODV is the perfect explosion vent for harsh operating conditions with frequent pressure cycling and it is often used for filters with frequent yet-pulse cleaning, high vacuum or suction conveyors. The standard explosion pressure is 0.1 bar at 22 °C.
Applications
The REMBE® ODV explosion vent is used under demanding vacuum to overpressure cyclic operating conditions. It is designed for working pressures of up to 80 % of static burst pressure. The ODV is ideal for use in applications such as filters with frequent jet-pulse cleaning, high vacuum or suction conveyors. It is vacuum resistant and the standard explosion pressure is 0.1 bar at 71.6 °F.
The ODU explosion vent is ideal for applications that involve pressure cycling but no vacuum. In this version, the vacuum layer section of the ODV is replaced by a supporting lower layer. Mechanism
When pressure rises, the ODV explosion vent opens and releases pressure out of the vessel into the surrounding area.
Your advantages
- Low response pressure with full vacuum resistance is possible.
- High working pressure resistance of the explosion vent offers maximum productivity for your processes.
- Triple layered domed construction ensures high pressure cycling resistance and exceptional service life.
- Rounded versions and special customized solutions are possible.
